Software update for your charging hardware

Porsche owner reviewing Porsche software together with an electrician on a tablet in his garage.

Available Software Updates for Your Porsche Charging Hardware

Porsche Wallbox

Version: 45.303
File size: 99 MB

Software update 45.303 improves the function of your Porsche Wallbox.*

The following functions will be adjusted upon installation:¹

Optimisation and robustness measures for the installed software

Improvements to the display via HMI, web app and My Porsche app

Implementation of grid regulation for Austria (TOR)

Download update for

Porsche Wallbox

Porsche Mobile Charger Connect

Version: 3031
File size: 113 MB

Software update 3031 improves the function of your Porsche Mobile Charger Connect.

The update will include changes to features as listed below:¹

Optimisation and robustness measures for the installed software

Download update for

Porsche Mobile Charger Connect

Porsche Home Energy Manager

Version: 0290
File size: 114 MB

The software update 0290 is intended to improve the functionality of your Porsche Home Energy Manager.

The installation adapts the following functions:¹

Optimisations in the user interface

Expansion of diagnostic functionality

Improvements and stabilisation of functions

Optimisation and robustness measures of the installed software

The Porsche Home Energy Manager is no longer available as a new part. Spare parts can still be ordered from your Porsche Centre.

Download update for

Porsche Home Energy Manager

¹ Please note that in order to use all functions, the latest software version must also be installed in your vehicle and in your Porsche Charging Hardware.

Software version is compatible with all previous versions and can be installed directly. The update does not affect the third-party content and the certification of your product.

Installation guide Porsche Wallbox

Connect your device to the charging hardware and follow the next steps.

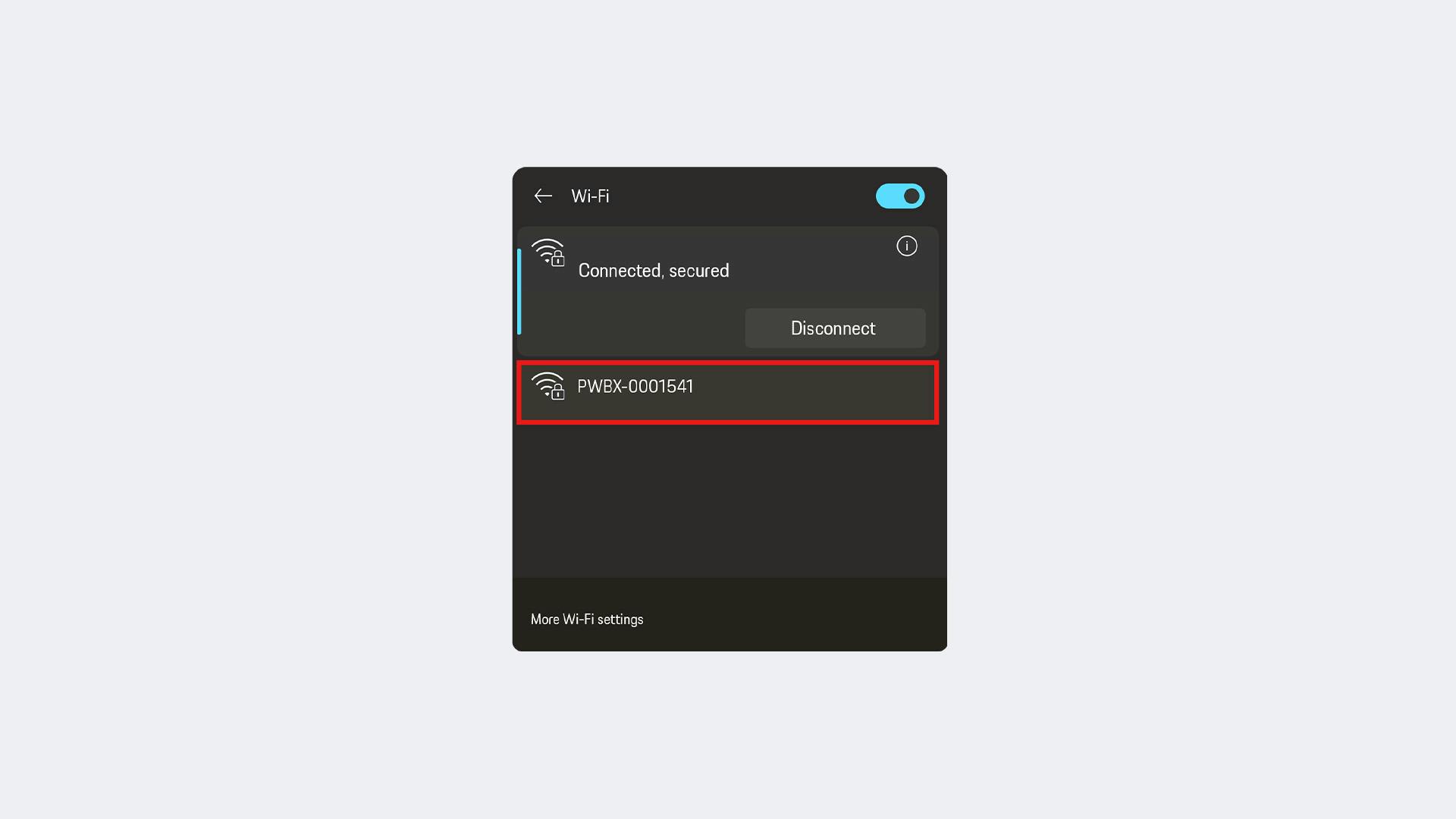

Wi-Fi settings menu. The network “PWBX-0001541” is highlighted.

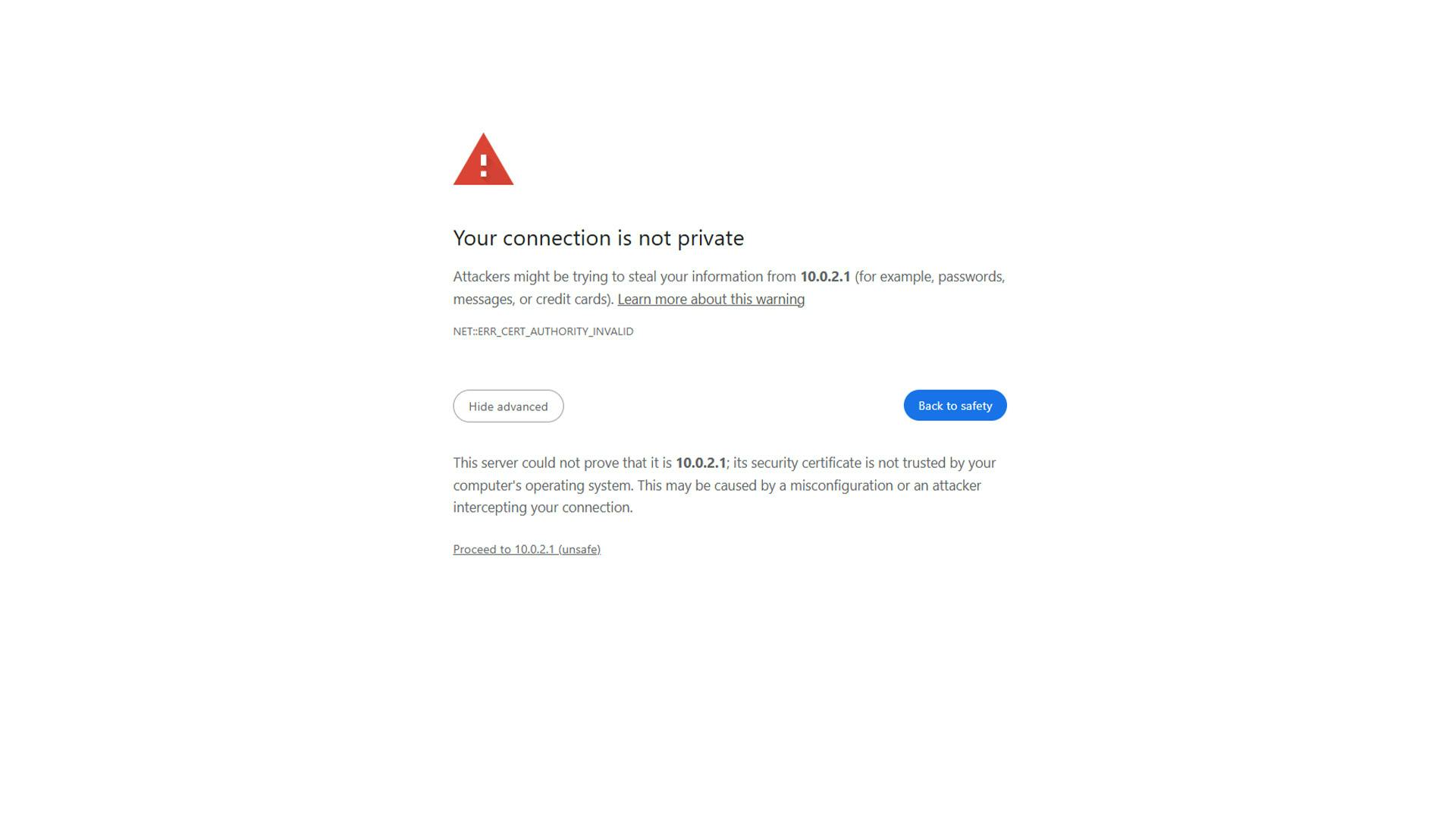

Browser security warning for the connection. The options “Hide advanced information”, “Return to secure website” and “Continue to 10.0.2.1 (unsecure)” are displayed.

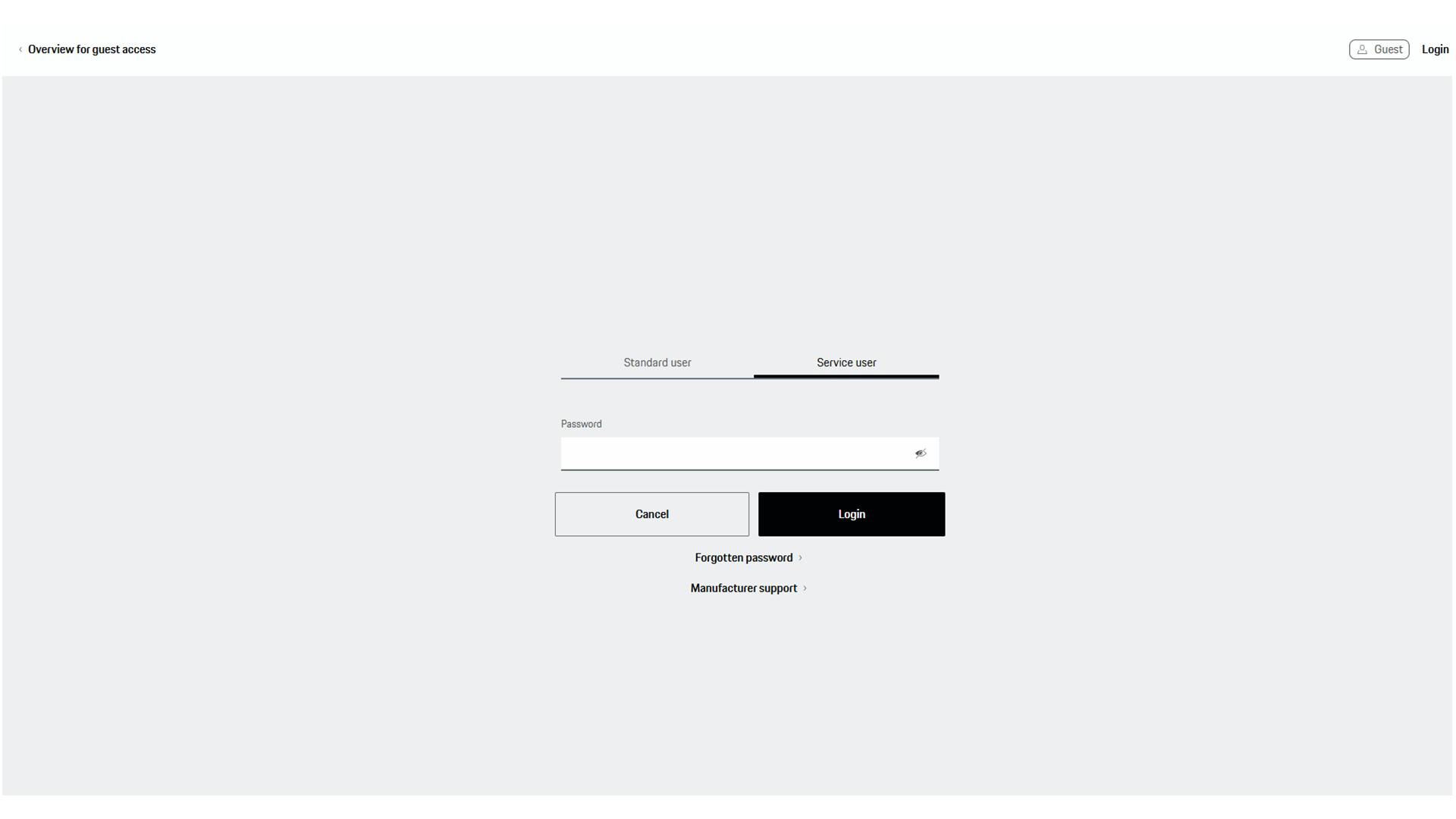

User and password entry for logging into the Porsche Wallbox web application.

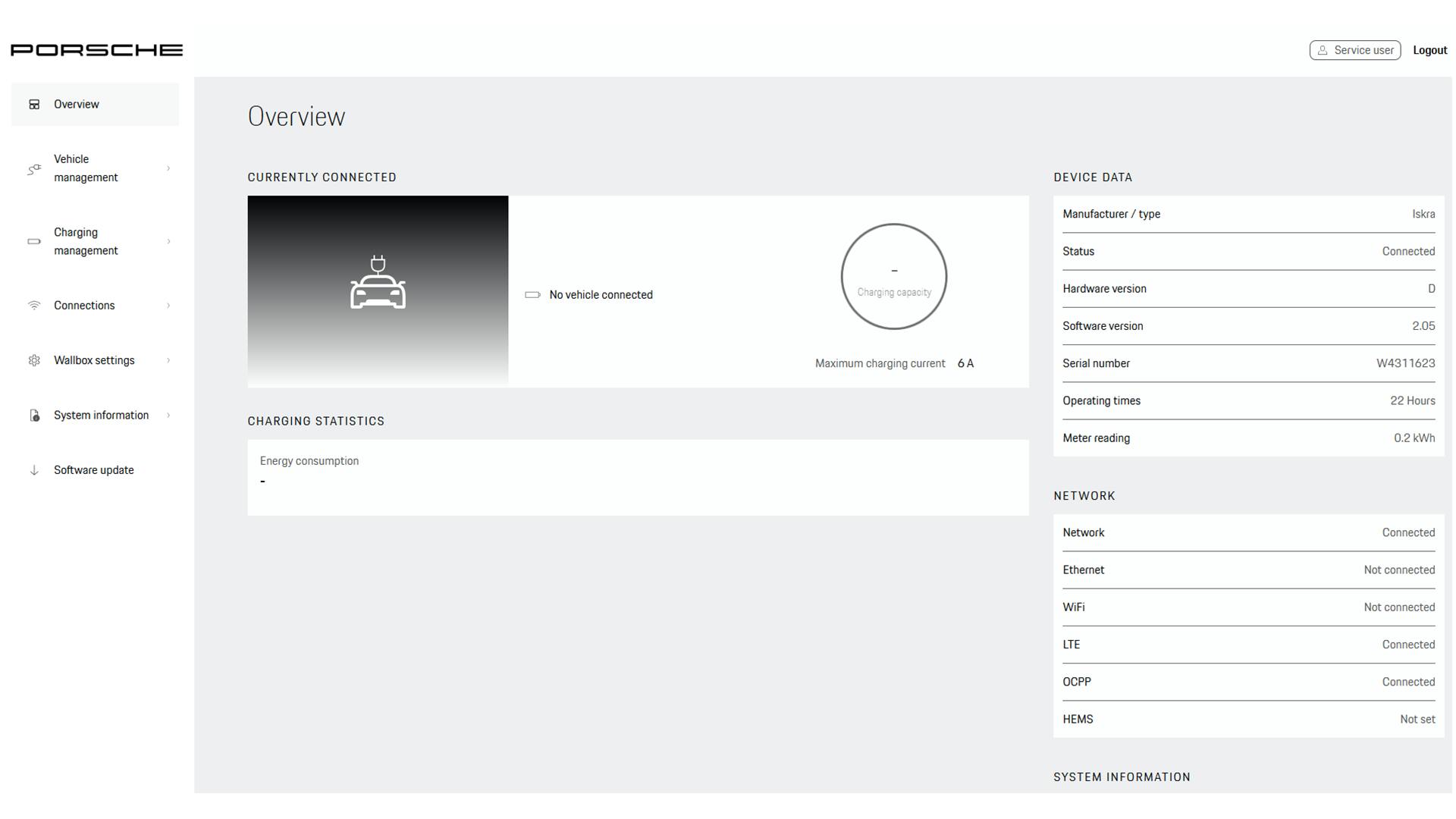

Overview menu after logging in to the web application.

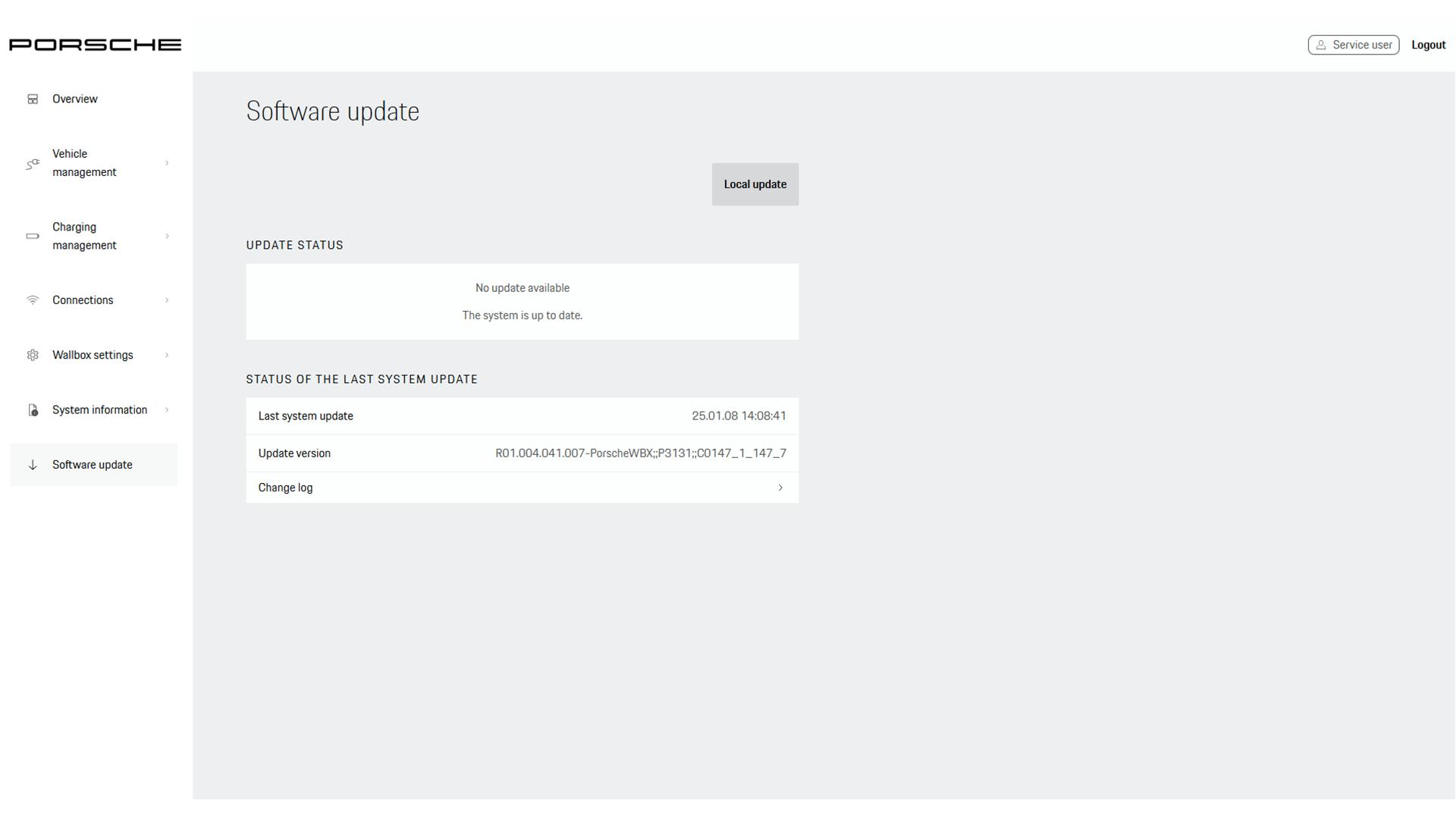

Menu for software update in the web application. The button for a local update is located at the top right.

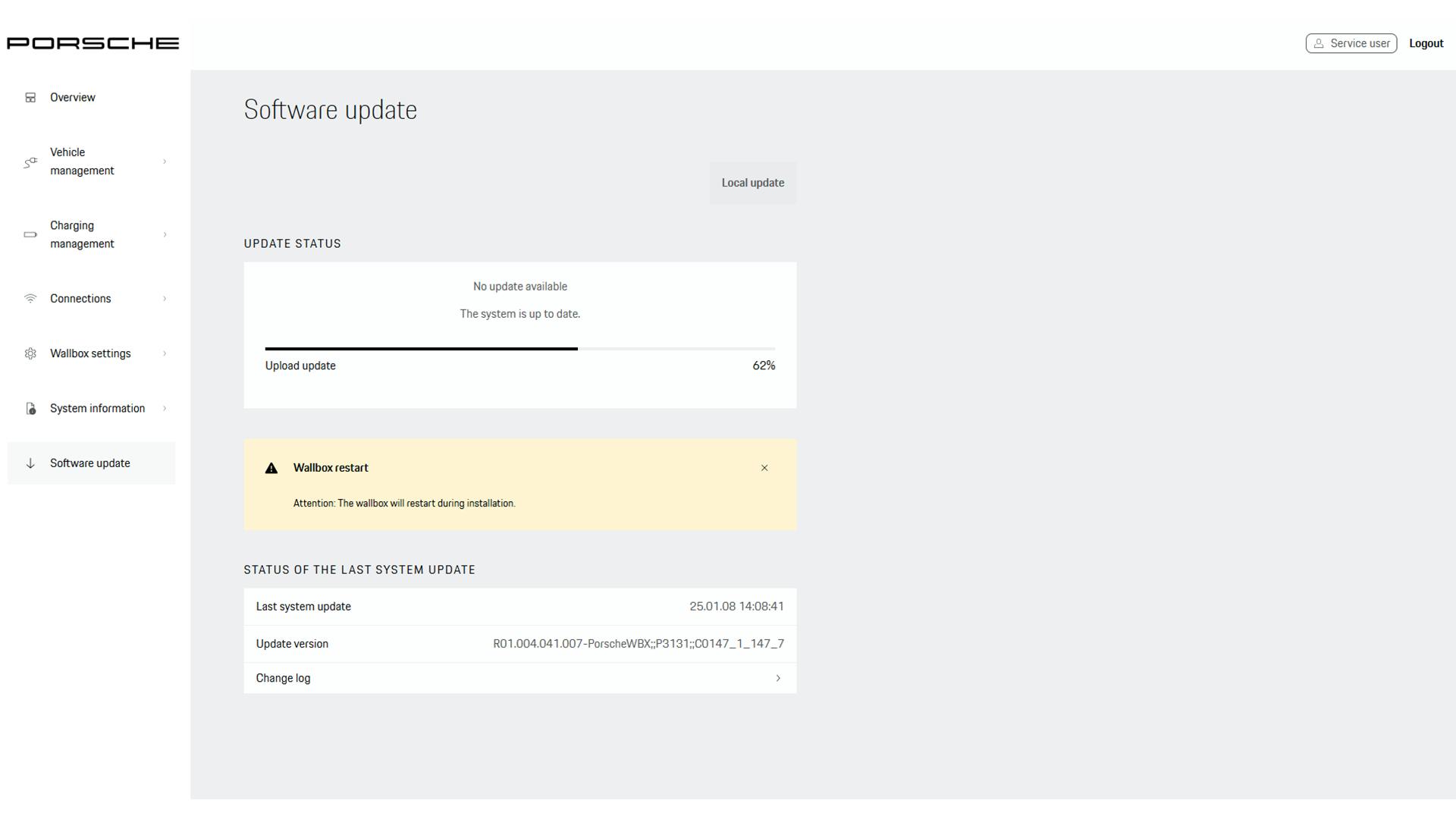

Progress indicator in the software update menu after a local update has been started

Connect to the Wallbox Hotspot

Connect your device (recommended: PC/laptop) via WiFi to the charger’s hotspot using the Wallbox hotspot The name of the WiFi hotspot is “PWBX-…” followed by the serial number. If the Wallbox's WiFi hotspot does not appear in the list of available networks, restart the Wallbox by pressing the power button for at least 10 seconds, or by switching the corresponding fuse off and on. Enter the WiFi Password provided in the access data letter

Open the Wep Application via your Browser

Enter the IP address 10.0.2.1 in the search bar of your Internet browser – It is recommended to use the Google Chrome browser. Display issues may occur with the security warning when using Internet Explorer. A security warning shows up - ignore it and click continue (connect to 10.0.2.1)

Open Web Application

Log in to the web application as a "Service user". The URL in the address bar depends on the connection type: Direct hotspot: 10.0.2.1 | WiFi: local wallbox URL (from your access data letter or in the router overview) | Ethernet: 10.0.1.30
